Using Varjo Controllers

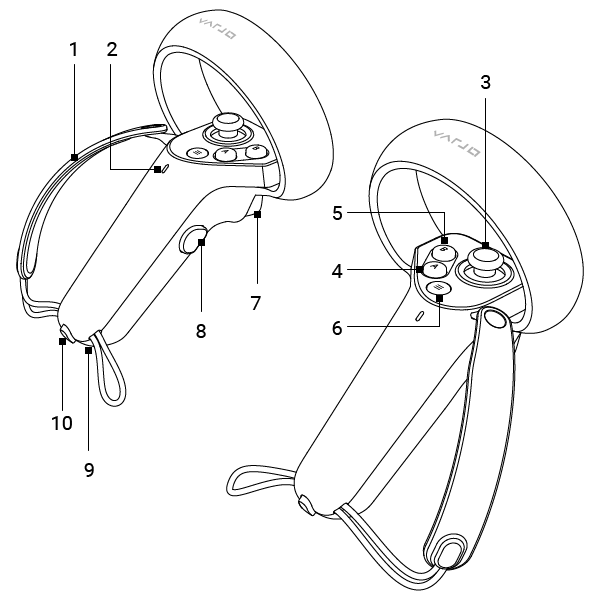

Keys and parts

1. Hand strap
2. Status indicator
3. Thumbstick
4. Button A
5. Button B
6. Menu button / Long press to power on and off
7. Trigger
8. Grip button
9. Charging port (USB-C)
10. Hand strap release button

Wearing instructions

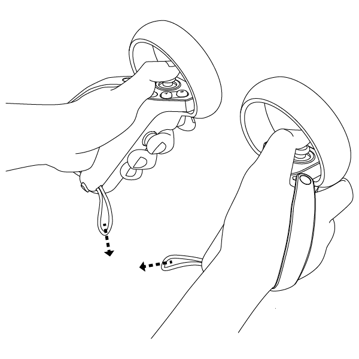

	1. Hold the controller in your hand so that you can reach all buttons comfortably with your fingers. Tighten the hand strap by pulling the tightening loop.

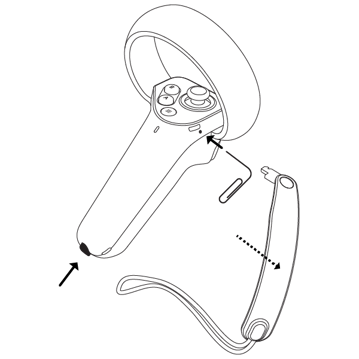

	2. You can detach the hand strap from the controller. Push the hand strap release button and pull the lower part of the hand strap away. Release the upper part of the hand strap, for example with the help of a paper clip.

Powering the controllers on and off

Long press the Menu button to power the controllers on and off. The controllers will go idle if unused for 5 minutes.

The controllers are automatically activated when you press any button.
