Extended face cushion for XR-4 Series

Varjo headsets come with an attached face cushion. You can replace the standard face cushion with an extended face cushion with side pads available in Varjo Store.

Note that face cushions are not interchangeable between product generations.

Overview

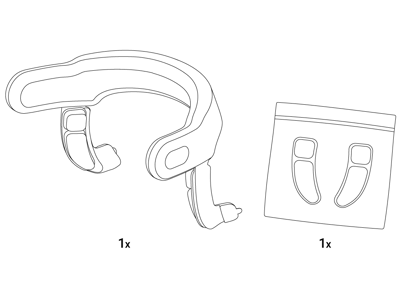

Ext-face-cushion_WEB_1024__v02__in_the_box

Included with the Extended face cushion is an extra set of side pads.

Changing the face cushion

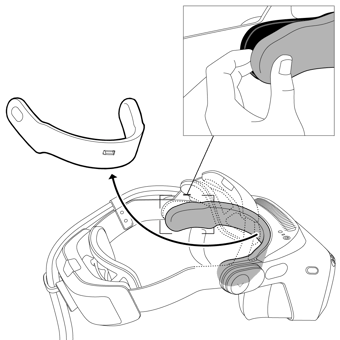

Ext-face-cushion_WEB_1024__v02__remove_orig_face_cushion

Step 1.

Remove the face cushion. Make sure not to grab the cushion frame as it is attached with glue.

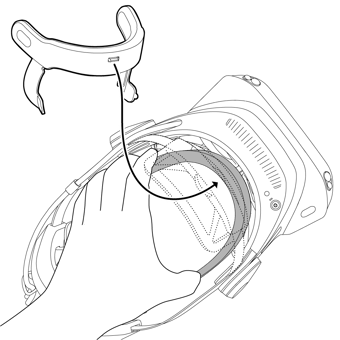

Ext-face-cushion_WEB_1024__v02__install_elvis_face_cushion

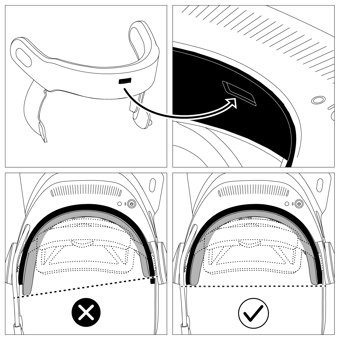

Ext-face-cushion_WEB_1024__v02__install_elvis_face_cushion-details

Step 2a.

Attach a new cushion.













Step 2b.

Make sure to align the center and both sides so that the cushion covers the hook-and-loop strips evenly.
Ext-face-cushion_WEB_1024__v02__remove_sticker

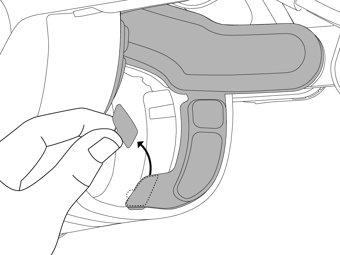

Step 3.

Remove the protective covering from the adhesive.

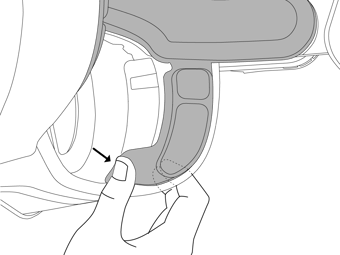

Ext-face-cushion_WEB_1024__v02__push_sticker

Step 4.

Attach the adhesive to the light blocker on both sides.

Make sure the sides of the Extended face cushion are aligned properly before attaching the adhesive.

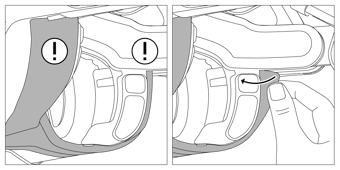

Ext-face-cushion_WEB_1024__v02__bend_silicon_cover-01

Step 5.

Return the silicone light blockers to their original position so that they cover the side pads.



Using the side pads

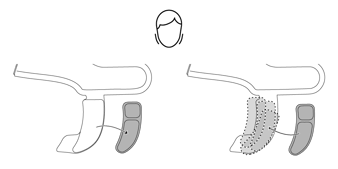

Ext-face-cushion_WEB_1024__v02__move_pad The side pads can be moved to find the best fit for your comfort, or even removed completely to accommodate multiple users.

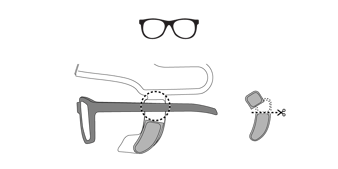

Ext-face-cushion_WEB_1024__v02__cut_pad The extended face cushion can also be worn with eyeglasses. To make more space for the eyeglass frames, you can move the side pads lower, or even cut out the top part completely.
