Connecting 15 m cable pair – XR-4 Series (2026)

XR-4 Series headset comes with a pair of 5 m (16 ft) cables that are used to connect the headset to your computer. You can replace the standard cable pair with a longer 15 m (49 ft) cable pair.

Only use cables supplied by Varjo to connect your headset. We cannot guarantee full functionality when using other cables.

Before you start, disconnect the headset from all other devices.

Overview

15m_cable_change

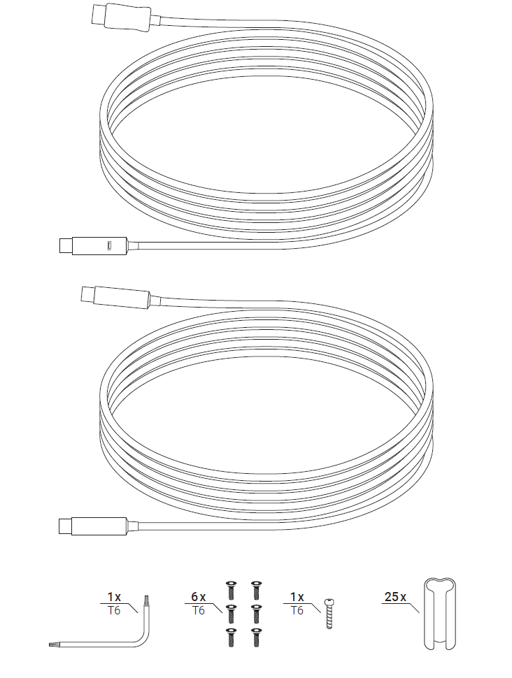

Included with the 15 m cable pair are the headset cables (Display cable, USB-C data cable), a T6 allen key, spare screws (x6+1), and cable clips (x25).

Disconnecting the standard cable pair

Disconnect the standard cable pair from your headset as follows:

Gaia-removing-face-cushion

Step 1.

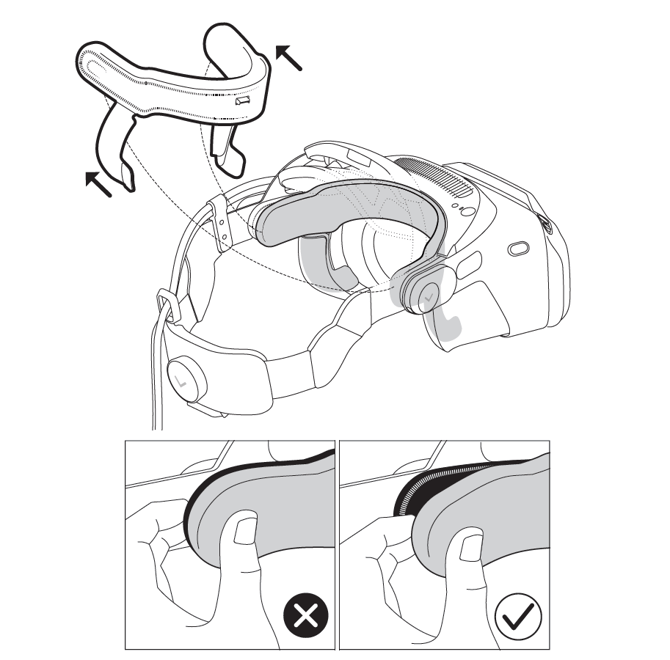

Remove the face cushion. Make sure not to grab the cushion frame as this is attached with glue.

15m_cable_step2

Step 2.

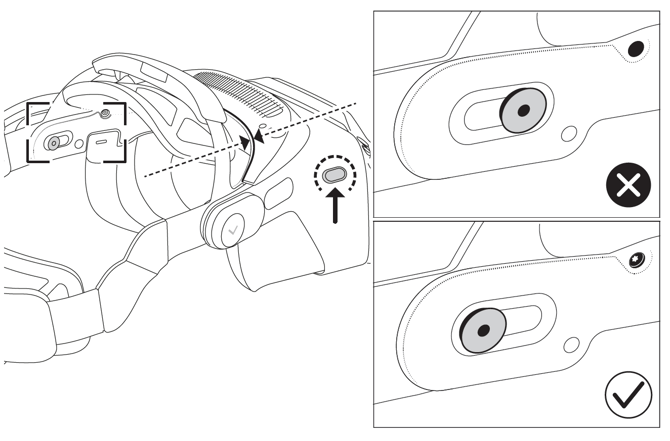

Push the field-of-view adjustment button and set it to its minimum position so that the screw in the zoomed-in picture becomes visible from the hole.

15m_cable_step3

Step 3.

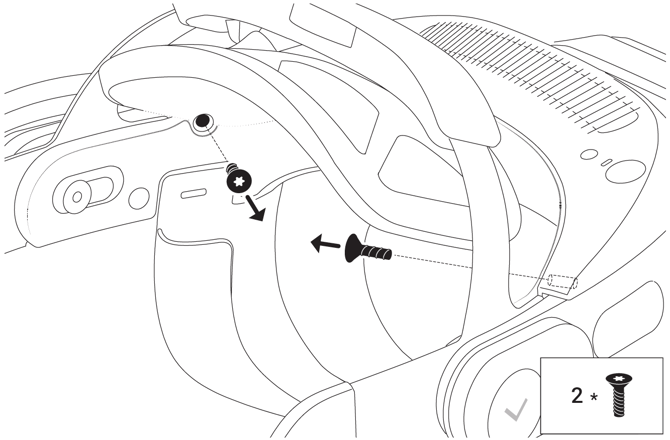

Remove the screws from both sides.

15m_cable_step4

Step 4.

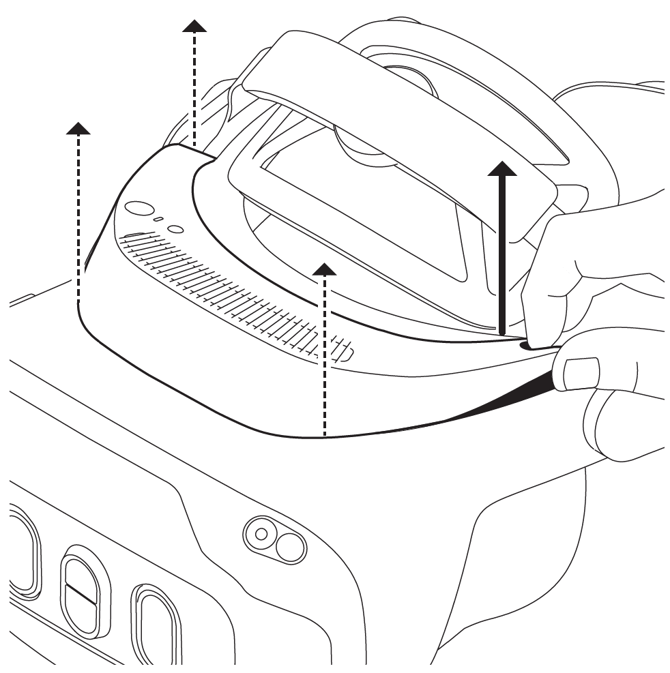

Gently lift the protective cover off the headset using your hands.

15m_cable_step5

Step 5.

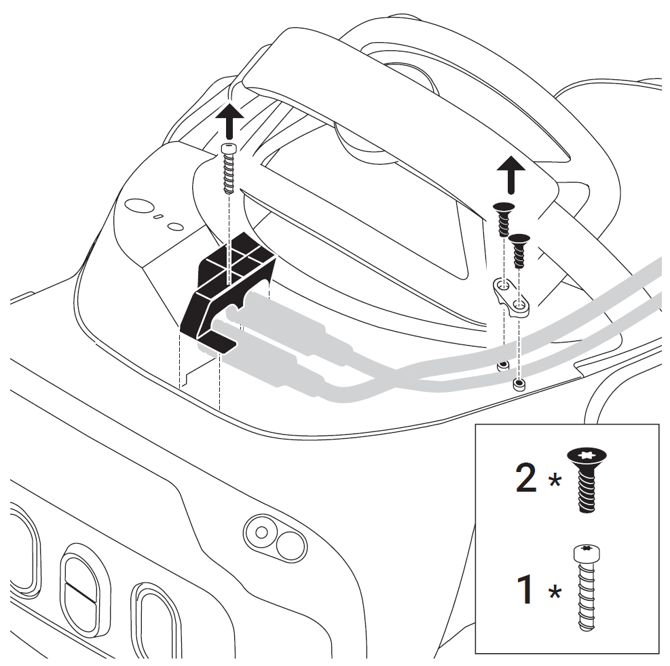

Unscrew and detach both cable clamps from the headset.

15m_cable_step6

Step 6.

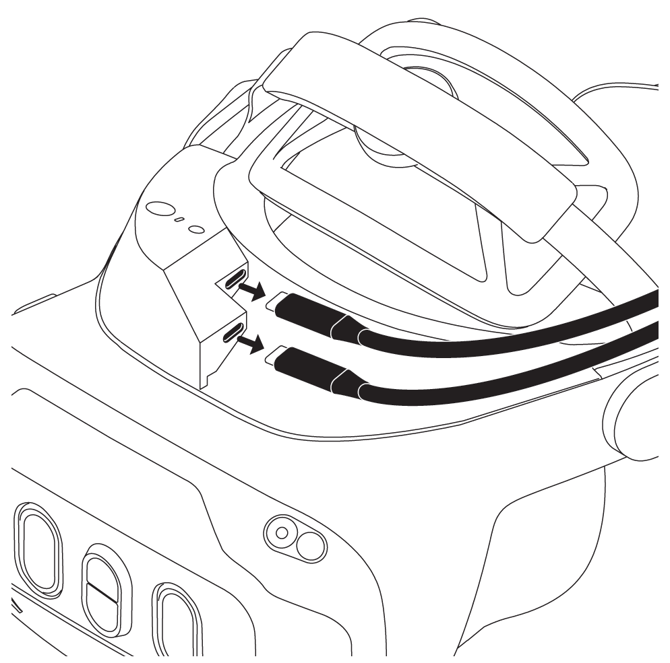

Disconnect both cables from the headset.

15m_cable_step7

Step 7.

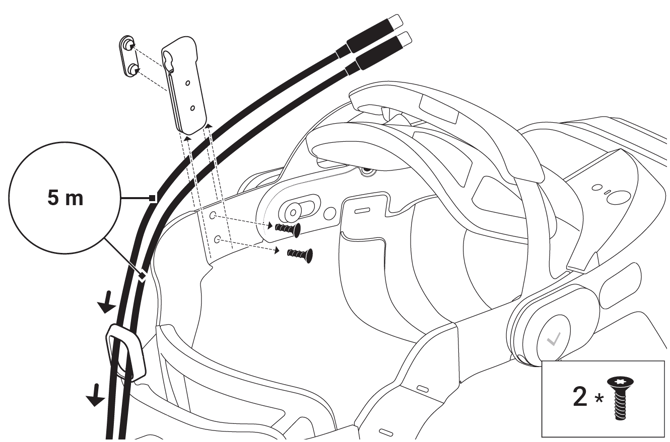

Unscrew and detach the cable clamp on the left side of the headband. Remove the cables from the cable holder on the back of the headset.

Connecting the 15 m cable pair

Connect the 15 m cable pair to your headset as follows:

15m_cable_step8

Step 8.

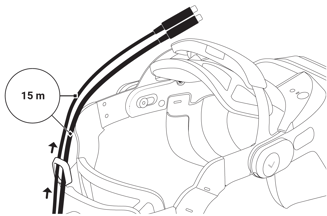

Run the cables through the cable holder on the back of the headset.



15m_cable_step9

Step 9.

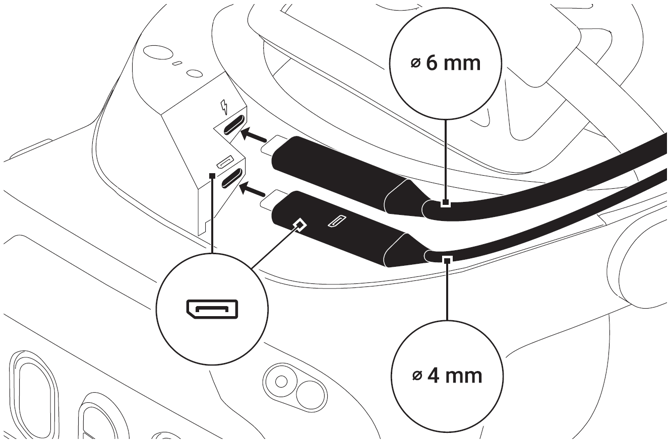

Connect the 15 m data cable to the slot with the lightning symbol, and the display cable to the slot with the DisplayPort symbol.

Note: the symbol on the display cable corresponds to the icon on top of the correct slot on the headset.

15m_cable_step10

Step 10.

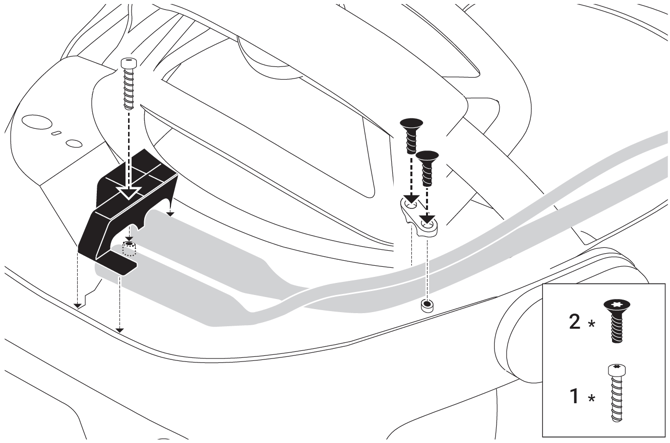

Attach both cable clamps to the headset.

Note: make sure to set the display cable on top of the data cable in the clamp before attaching the cable clamp, as shown in the picture.

Do not overtighten the screws.

15m_cable_step11

Step 11.

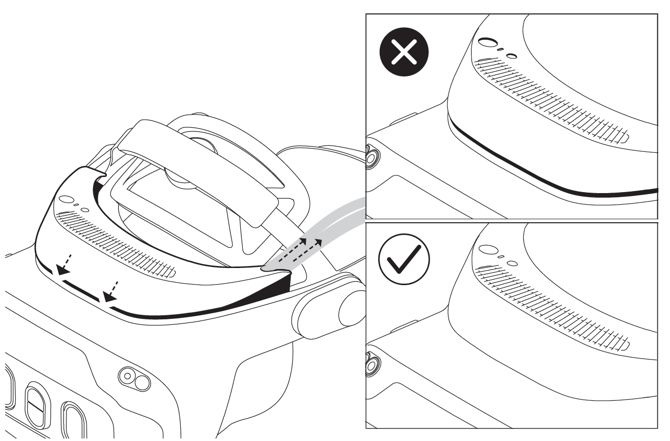

Slide the front of the protective cover in place first and make sure the cables align with the hole on the protective cover.

15m_cable_step12

Step 12.

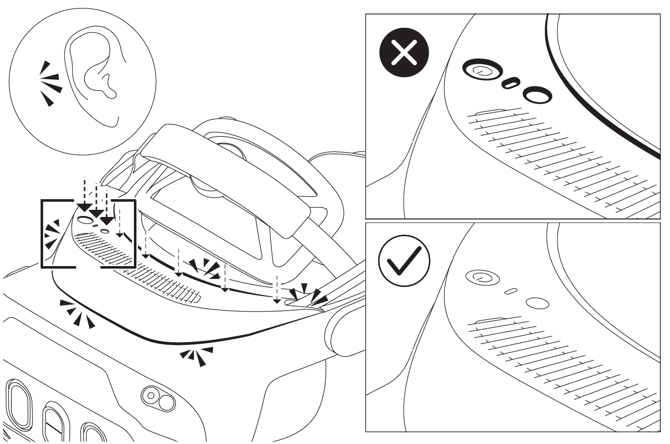

Press the protective cover in place on all sides until you hear an audible click sound. The cover is correctly in place when there are no gaps visible.

15m_cable_step13

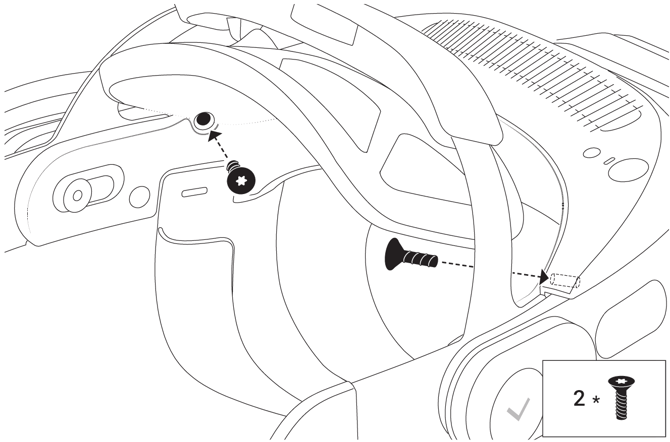

Step 13.

Fasten the screws on both sides of the headset.

Do not overtighten the screws.

Gaia_insert_face_cushion

Step 14.

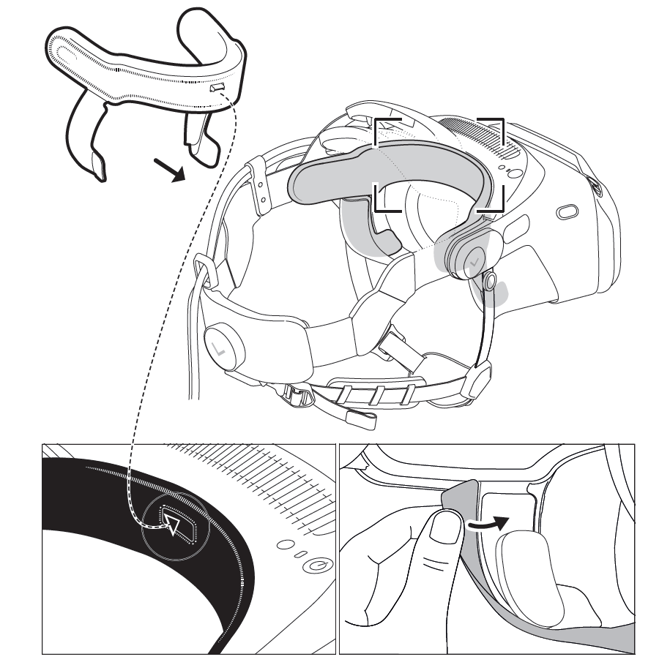

Reattach the face cushion. Make sure to align the center pin and both sides so that the cushion covers the hook-and-loop strips entirely.

15m_cable_step15

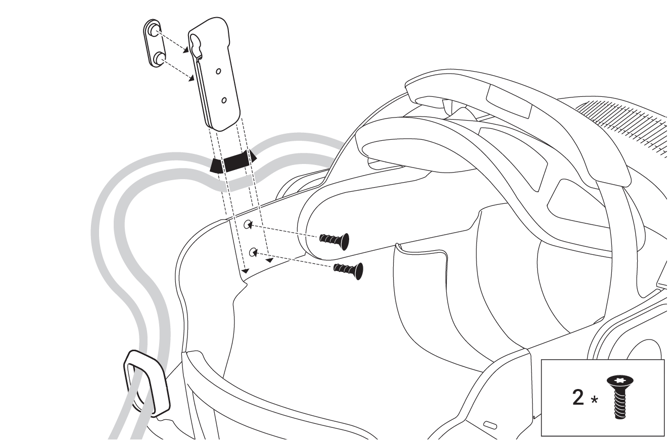

Step 15.

Reattach the cables to the left side of the headband with the cable clamp. Fasten the cable clamp with screws.

Do not overtighten the screws.

15m_cable_step16

Step 16.

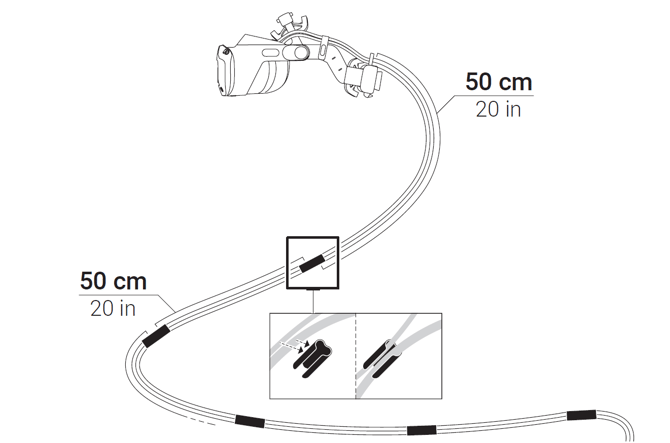

Tie the cables together along their length using the supplied cable clips. Leave a space of 50 cm (20 in) between clips.
